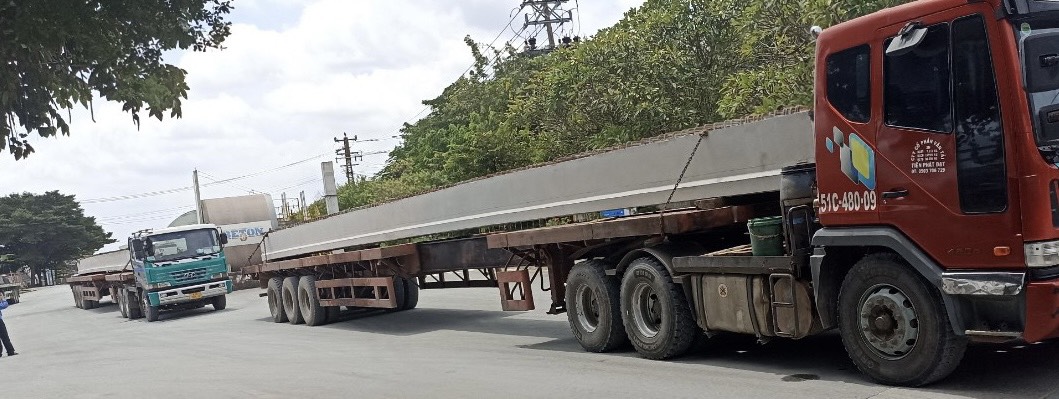

PC Girder 12.5m
TN E&C produces and supplies girder 12.5m for all large and small-scale transportation infrastructure projects in the South.
| STT | PRODUCT NAME | LENGTH (m) | WIDTH (mm) | HEIGHT (mm) | WEIGHT (T) | LOAD |
| 01 | Girder I 33 | 33 | 610 | 1400 | 36,4 | H30 & XB80 – HL93 |
| 02 | Girder I 24.54 | 24,54 | 558 | 1143 | 22,5 | H30 & XB80 – HL93 |
| 03 | Girder 18.6 | 18,6 | 400 | 950 | 13,5 | H30 & XB80 – HL93 |
| 04 | Girder 12.5 | 12,5 | 400 | 700 | 5,55 | H30 & XB80 – HL93 |
| 05 | Box Girder | 10→20 | 990 | 650→750 | 12.70→26.83 | H30 & XB80 – HL93 |
| 06 | Upper T Girder | L ≤ 16 | 980 | 550 | 0,67 T/md | HL-93 |
| L ≤ 20 | 750 | 0,76 T/md | ||||
| 20 < L ≤ 25 | 900 | 0,86 T/md | ||||
| 25 < L ≤ 28 | 1100 | 0,95 T/md | ||||
| 28 < L ≤ 33 | 1350 | 1,05 T/md | ||||
| 07 | Girder Super-T | 38,2 | 2400 | 1750 | 68 | HL-93 |
Design standards: 22TCN 272-05 “Bridge design”, 22TCN 18-79 “Bridge design on limit status”.
For Prestressed Rural Girder, design standards: 22TCN 210-92 “Rural road”, 22TCN 18-79 “Bridge design on limit status”.
Acceptance standards: TCVN 9115:2012 "Assembled concrete / reinforced concrete structure – Construction and acceptance"
TCVN 4453-1995 " Monolithic concrete /reinforced concrete structures –Construction and acceptance", TCVN 9114:2012 "Prestressed concrete product –Technical specifications and acceptance",22 TCN 247-98 "Prestressed concrete girder Specifications and acceptance”, JIS
Prestressing steel: ASTM A416 or equivalent.
Reinforcing steel: TCVN 1651:2008 or equivalent.
Coarse aggregate: ASTM C33 or equivalent.
Fine aggregate (Natural sand, manufactured sand, or combination): ASTM C33 or equivalent.
Cement (Blended portland cement of PCB 40 or higher): TCVN 6260-2009 or equivalent.
Water: TCXDVN 4506:2012 “Water for mixing concrete and mortar - Technical specification
Design: 42Mpa – 70Mpa or higher (cylinder sample 15x30cm).
At transfer of prestress: minimum 35Mpa for Prestressed girder and 90% design strength for post tension girder

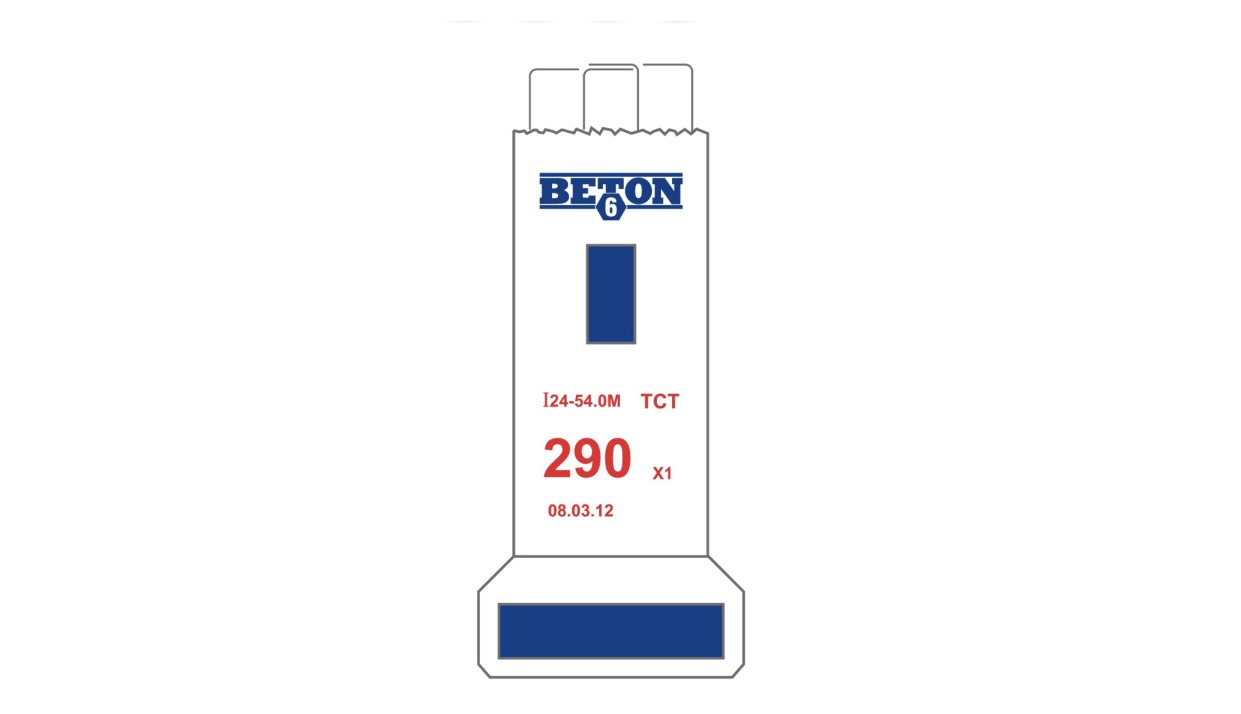

| Beton6 | Company name |
| I 24.54M | Name and length of girder |
| TCT | Abbreviated name of the project |
| 290 | Girder number |
| X1 | Casting workshop |
| 08.03.12 | Date of manufacture |
